Máy quay phim Blackmagic URSA Mini Pro 4.6K G2

rating Máy quay phim Blackmagic URSA Mini Pro 4.6K G2 (0 đánh giá | Gửi đánh giá)
Tình trạng
Đặt hàng
Bảo hành
1 năm
Tóm tắt sản phẩm
URSA Mini Pro 4.6K G2 là máy ảnh phim kỹ thuật số thế hệ tiếp theo với các thiết bị điện tử được cập nhật và cảm biến hình ảnh HDR 4.6K hiệu suất cao để chụp với tốc độ lên tới 300 khung hình mỗi giây. Bạn nhận được cảm biến Super 35mm 4.6K với 15 điểm dừng của dải động, được tích hợp bộ lọc ND quang, ngàm ống kính EF có thể hoán đổi cho nhau để có thể thay thế cho ngàm PL, B4 hoặc F, Blackmagic RAW và ProRes ghi vào thẻ CFast hoặc SD kép và cổng mở rộng USB-C cải tiến để ghi trực tiếp vào các ổ đĩa ngoài. Ngoài ra, URSA Mini Pro 4.6K G2 có một bộ điều khiển kiểu phát sóng bên ngoài khổng lồ, hiển thị trạng thái ngược sáng, màn hình cảm ứng dạng gập và hơn thế nữa!
Giá bán
173.113.000đ
Chi tiết sản phẩm Thông số kỹ thuật Đánh giá Download tài liệu

Camera Features
Effective Sensor Size
25.34mm x 14.25mm (Super35)
Lens Mount
EF mount included. Interchangeable with optional PL, B4 and F lens mounts.
Lens Control
Electronic control via EF mount pins or 12pin broadcast connector for compatible lenses
Dynamic Range
15 Stops.
Shooting Resolutions
4608 x 2592, 4608 x 1920 (4.6K 2.40:1), 4096 x 2304 (4K 16:9), 4096 x 2160 (4K DCI), 3840 x 2160 (Ultra HD), 3072 x 2560 (3K Anamorphic), 2048 x 1152 (2K 16:9), 2048 x 1080 (2K DCI), 1920 x 1080
Frame Rates
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported.
High Speed Frame Rates
Blackmagic RAW 8:1 4.6K Full - Up to 120 fps UHD Windowed - Up to 150 fps HD Windowed - Up to 300 fps ProRes 422 HQ 4.6K Full - Up to 80 fps UHD Windowed - Up to 120 fps HD Windowed - Up to 240 fps

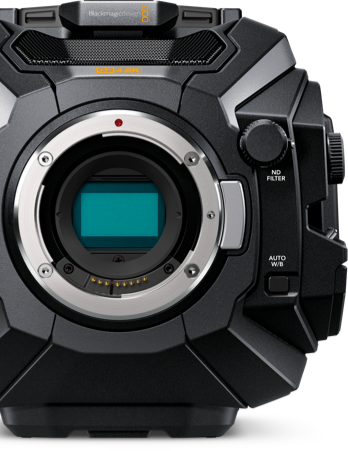

Built in ND Filters
Four position ND flter wheel with clear, 2-stop, 4-stop and 6-stop ND flters.
Focus
Focus button turns on peaking, auto focus available using compatible lenses.
Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in flm mode. Scene average auto exposure in video mode.

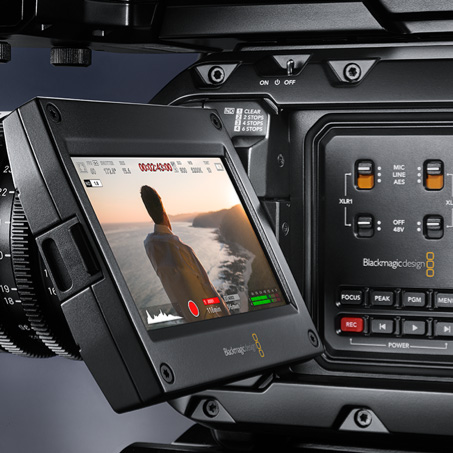

Screen Dimensions
4 inch
Screen Type
LCD capacitive touchscreen.
Metadata Support
Automatically populated lens data from electronic EF, B4 and i/ Technology compatible PL lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

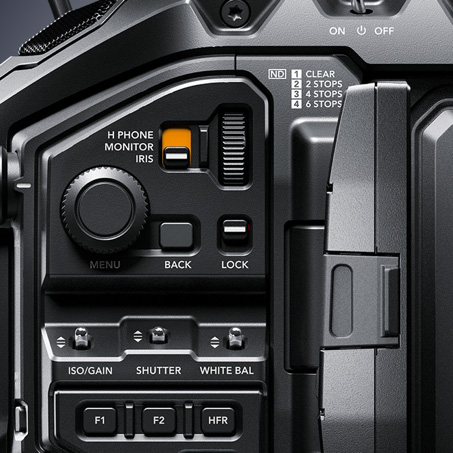

Controls
Touchscreen menus on 4 inch screen. Push buttons for other controls. 2 assignable shortcut keys.
Timecode Clock
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
Connections
Total Video Inputs
1 x SDI
Total Video Outputs
1 x SDI, 1 x SDI Monitoring.
SDI Rates
1.5G, 3G, 6G, 12G.
Analog Audio Inputs
2 x XLR analog switchable between mic, line and AES audio. Phantom power support.
Analog Audio Outputs
1 x 3.5mm headphone jack, supports iPhone microphone for talkback.
Reference Inputs
Tri-Sync/Black Burst/Timecode.
Remote Control
2 x 2.5mm LANC input for Rec Start/ Stop, plus Iris and Focus control using compatible lenses.
Computer Interface
USB Type-C 3.1 Gen 1 for external drive recording and software updates.

Audio

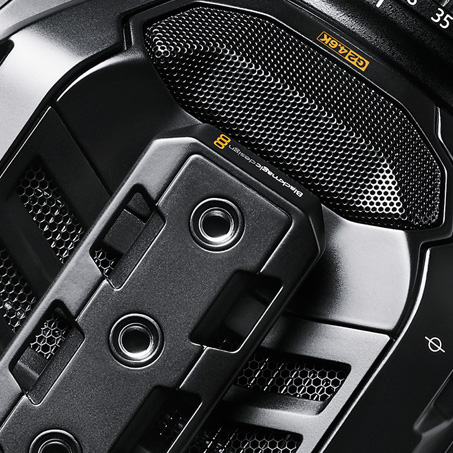

Microphone
Integrated stereo microphone.
Built in Speaker
1 x mono speaker.
Standards
SD Video Standards
None.
HD Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 292M, SMPTE 424 Level B,
SMPTE 2081-1, SMPTE 2082-1
SDI Audio Sampling
48 kHz and 24 bit
Media
Media
2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes recording. Please refer to either the Manual or the Information Note at www.blackmagicdesign.com/ support for compatible media.
Media Format
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) fle systems.
Supported Codecs
Codecs
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate
12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q5,
Apple ProRes XQ QuickTime, Apple
ProRes 444 QuickTime,
Apple ProRes 422 HQ QuickTime,
Apple ProRes 422 QuickTime,
Apple ProRes 422 HQ QuickTime,
Apple ProRes 422 LT QuickTime and
Apple ProRes 422 Proxy QuickTime.

Control
External Control

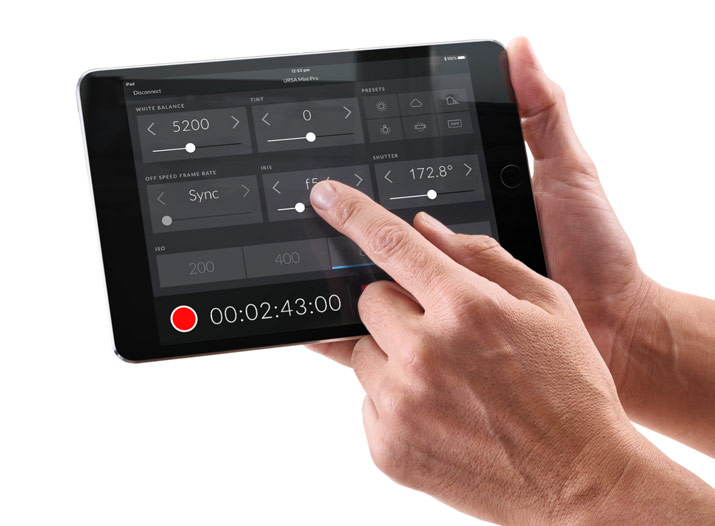

Blackmagic SDI Control Protocol, iPad control, Bluetooth control, 2 x 2.5mm LANC for lens and record control.
Color Corrector
Color Corrector
DaVinci YRGB.
Talkback and Tally
Talkback
SDI Channels 15/16 and iPhone headset.
Live Tally Indicator
Tally on LCD, URSA Viewfnder and URSA Studio Viewfnder.
Storage Features
Storage Type
2 x CFast 2.0
2 x SD UHS-II cards
1 x high speed USB-C expansion port for external media.

Storage Rates
Storage rates based on 30 frames
per second.
4608 x 2592
Blackmagic RAW 5:1 - 110 MB/s
Blackmagic RAW 8:1 - 68 MB/s
Blackmagic RAW 12:1 - 46 MB/s
Blackmagic RAW Q0 - 110 to 274 MB/
s *
Blackmagic RAW Q5 - 27 to 78 MB/s
**
Apple ProRes XQ - 360 MB/s
Apple ProRes 444 - 238 MB/s
Apple ProRes HQ - 158 MB/s
Apple ProRes 422 - 106 MB/s
Apple ProRes LT - 73.5 MB/s
Apple ProRes Proxy - 32.3 MB/s
3840 x 2160
Blackmagic RAW 3:1 - 127 MB/s
Blackmagic RAW 5:1 - 76 MB/s
Blackmagic RAW 8:1 - 48 MB/s
Blackmagic RAW 12:1 - 32 MB/s
Blackmagic RAW Q0 - 76 to 191 MB/s
*
Blackmagic RAW Q5 - 19 to 55 MB/s
**
Apple ProRes XQ - 250 MB/s
Apple ProRes 444 - 165 MB/s
Apple ProRes HQ - 110 MB/s
Apple ProRes 422 - 73.6 MB/s
Apple ProRes LT - 51 MB/s
Apple ProRes Proxy - 22.4 MB/s
1920 x 1080
Blackmagic RAW 3:1 - 33 MB/s
Blackmagic RAW 5:1 - 20 MB/s
Blackmagic RAW 8:1 - 12 MB/s
Blackmagic RAW 12:1 - 8 MB/s
Blackmagic RAW Q0 - 20 to 49 MB/s *
Blackmagic RAW Q5 - 5 to 14 MB/s **
Apple ProRes XQ - 62.5 MB/s
Apple ProRes 444 - 41.25 MB/s
Apple ProRes HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes LT - 12.75 MB/s
Apple ProRes Proxy - 5.6 MB/s

* Constant Quality setting Q0 storage rates quoted are indicative only, based on a 2:1 - 5:1 compression range.
** Constant Quality setting Q5 storage rates quoted are indicative only, based on a 7:1 - 20:1 compression range.
Actual storage rates are entirely dependent on image subject matter.

Recording Formats
Blackmagic RAW Q0, Q5, 3:1, 5:1, 8:1 and 12:1 at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3840 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with flm, extended video or video dynamic range.
ProRes at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3840 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with flm, extended video or video dynamic range.

Software
Software Included
URSA Mini Operating System
DaVinci Resolve Studio for Mac and Windows including activation key
Blackmagic Camera Setup
Blackmagic RAW Player
Blackmagic RAW QuickLook Plugin
Blackmagic RAW SDK

Power Requirements
Power Supply
1 x External 12V power supply. 12 pin Molex connector for rear battery plate.
External Power Input
1 x 4 pin XLR port for external power or battery use.
1 x 12 pin molex connector on rear battery plate.
Custom V-mount battery plate with D-tap +12V regulated output from camera.
Power
Rear camera mount compatible with industry standard V-mount or gold mount battery plates.

Accessories
Optional Accessories
URSA Mini Pro PL, EF, B4 and F Mounts
URSA Mini Pro Shim Kit
URSA Mini Shoulder Kit including top handle and extender arm

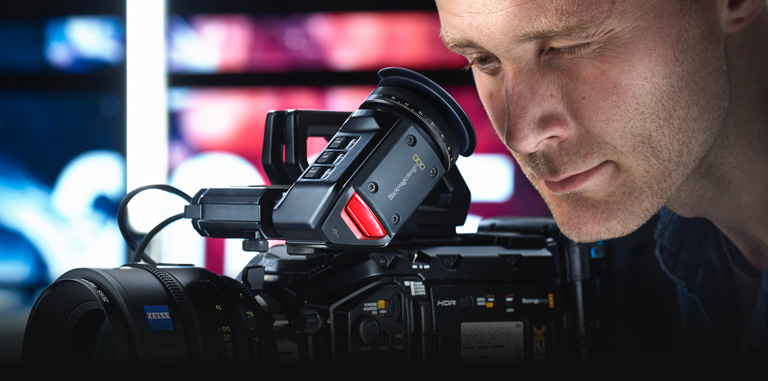

URSA Viewfnder

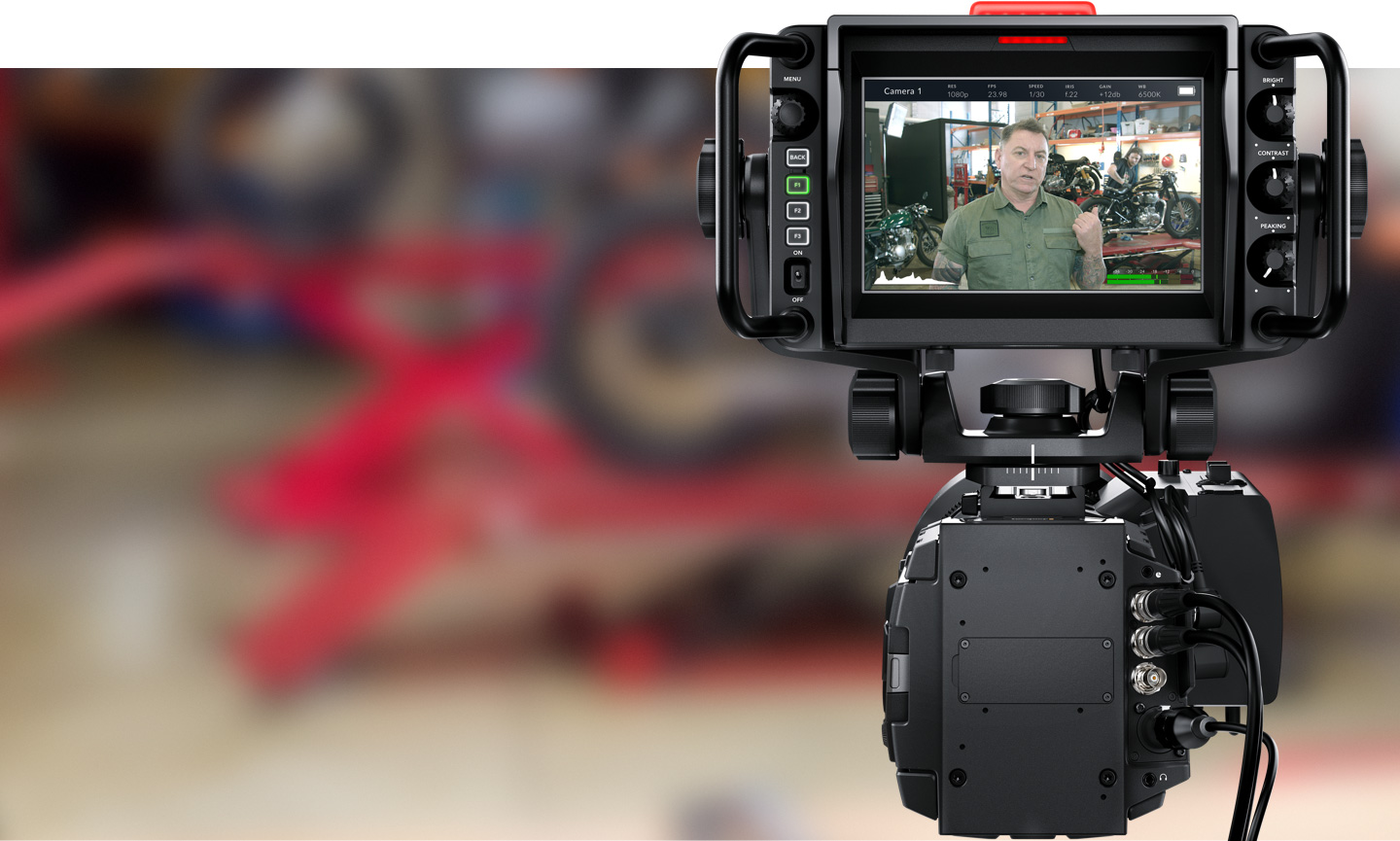

URSA Studio Viewfnder
URSA Mini SSD Recorder
URSA VLock Battery Plate
URSA Gold Battery Plate
URSA Mini Mic Mount
URSA Mini Top Handle
URSA Handgrip
Blackmagic Camera Fiber Converter
