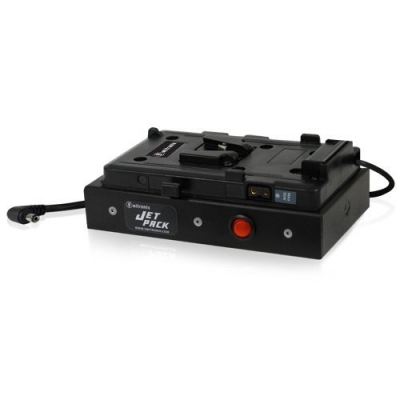

Switronix JP-V-BMCC

Descriptions
The jetpack offers all the power outputs you'll ever need in a super compact design.

The JetPack V BMCC includes:

-Power connection to your Black Magic Cinema Camera
-Two powertap outputs (power monitors, lights, etc.)
-One USB output (i.e. Redmote, Tascam DR-05, other USB device)
-One 5v Lemo output (i.e. Zoom, AJA)
-One 7.2v regulated outputs (i.e. HDV Cameras, DSLRs).
-One 12v regulated outputs (i.e. Blackmagic, 12v accessories).

The all aluminum design reduces weight while still being able to handle wear and tear.  The JetPack includes three 1/4-20 mounting points, as well as an optional "cheese" backplate, which offers additional 1/4-20 and 3/8-16 tapped holes.

Below outputs controlled by JetPack power switch:

USB Output: 5V, 1a**
LEMO 2-pin(0B): 5v, 2.5a
LEMO 3-pin(0B): 7.2v, 2.5a
LEMO 4-pin(0B): 12v, 2.5a

Mounting Points: 1/4-20 threads on bottom, and two on back
Mounting Points: M3 screw pattern on back for optional Cheese Plate

Specifications
Size: 6" x 3.5" x 1.88
Weight: 1.2 lbs.
V-Mount Battery Input: DC 11-17v
BMCC Pin Output: DC 11-17v, Unregulated
P-Tap(2) Outputs: DC 11-17v, Unregulated
Compatible with 2.5k and 4k Cinema Cameras
