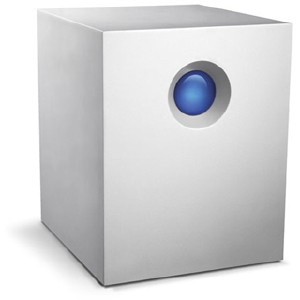

LaCie 4Big Quadra 12Tb

Overview

The 12TB 4big Quadra USB 3.0 Hard Drive RAID from LaCie is an external 4-disk array that delivers a fail-safe storage solution. As configured, the array offers a data storage capacity of 12TB, comprising four 3TB hot-swappable drives, each with a 3.5" form factor and a SATA interface.

The system is equipped with a USB 3.0 interface, as well as dual FireWire 800 ports. It's also backwards compatible with USB 2.0 and FireWire 400. With USB 3.0, the average data transfer rate of the array is 245MB/s, while the theoretical maximum is 5Gb/s. With FireWire, the average data transfer speed is 82MB/s, and the fastest theoretical speed possible is 800Mb/s. The array can be set up in a variety of RAID backup configurations, including RAID 0, 5, 5+spare, and 10, giving you the flexibility to choose higher data storage capacity, greater data protection, improved performance including faster data transfer rates, or some balance among these benefits.

The system is compatible with Windows 8, 7, Vista, or XP, and Mac OS X 10.8, 10.7, 10.6, or 10.5 (Intel only). It includes the following software: LaCie Desktop Manager, Genie Backup Manager Pro for PC, and Intego Backup Manager Pro for Mac. Plus, benefit from Wuala Secure Cloud Storage.

Data storage capacity of 12TB, with four 3TB, 7200rpm hard drives, each with a 3.5" form factor and a SATA interface. The drives are hot-swappable, meaning you can just swap in a new disk without switching off the array--for zero downtime

Connects to a computer via USB 3.0, USB 2.0, FireWire 800 or FireWire 400 interface (400 requires adapter cable, sold separately). With USB 3.0, the average data transfer rate of the array is 245MB/s, while the theoretical maximum is 5Gb/s. With FireWire, the average data transfer speed is 82MB/s, and the fastest theoretical speed possible is 800Mb/s. Speeds depend upon the RAID mode selected. Play back multiple HD video streams in Final Cut Pro X or Adobe Premiere. Also benefit from more responsive photo library browsing in Aperture or Lightroom

The FireWire 800 ports give you the ability to daisy chain older external storage devices or A/V peripherals in order to import data directly

Hardware RAID, or Redundant Array of Independent Disks, controller ensures sustained performance and prevents dropped frames. It is configurable as RAID 0, 5, 5+spare, or 10. Preconfigured as RAID 5. RAID 0 offers no redundancy, so it gives you the least amount of data protection, but offers improved performance and additional storage (100% capacity). RAID 5 offers redundant data protection in the form of distributed parity, and the trade-off is reduced capacity (75%) and generally somewhat reduced performance. The 5+spare mode uses a hot spare drive, which remains inactive until an active drive fails, at which point the system automatically replaces the failed drive with the spare and rebuilds the array. This mode gives you 50% capacity, the lowest level of performance, and, like RAID 10, the greatest amount of protection. RAID 10 employs data mirroring: Data is written in stripes across the primary disks and then mirrored to the secondary disks. This configuration offers performance equal to that of RAID 5 and, like RAID 5+spare, 50% capacity. Changing the RAID mode is easy and convenient thanks to two-step configuration

LaCie Shortcut button: Launch any application, such as backup, music, or slideshow, by pushing the front button

Cable management system keeps all cables securely connected to the array

Kensington lock compatibility prevents theft

Includes LaCie Desktop Manager software, as well as professional backup software: Genie Backup Manager Pro for PC and Intego Backup Manager Pro for Mac. These programs enable you to perform file-level and even system-level backup and restore. Create a complete system backup enabling you to boot your Mac directly from the array, and benefit from Time Machine compatibility

Wuala Secure Cloud Storage lets you securely store, backup, and access files from anywhere. Share data with co-workers, friends, and family. You can sync your files across multiple computers, and even restore deleted files. All files are encrypted on your computer for protection

Works with Windows 8, 7, Vista, or XP, and Mac OS X 10.8, 10.7, 10.6, or 10.5 (Intel only)

Advanced dual cooling system prevents overheating for long-term reliability. This system consists of three key components: a heat-dissipating aluminum casing, a Noctua cooling fan, and jumbo heat exhausts. The solid-aluminum heat sink design diverts and dissipates heat with greater efficiency than plastic casings. Quiet Noctua NF-P12 fan draws heat away from the internal components while controlling its speed according to temperature, working more efficiently while increasing its lifespan. Plus, oversized air holes facilitate airflow from the fan and also work to minimize noise

Eco mode puts drives to sleep after a period of inactivity, helping to prevent overheating and manage power consumption

Stand the unit alone or stack multiple LaCie 4big units to give you greater storage capacity and save space

Set up email alerts to help you monitor your array before potential problems become real ones

Specifications

Item Number :	9000351AS
Capacity :	12TB

Interface :	1 x USB 3.0 port (UAS compatible and USB 2.0 compatible) 2 x FireWire 800 (9-pin) ports

Rotational Speed (rpm) :	7200rpm

Cache :	32MB or greater

Interface Transfer Rate (max. bus speed) :	USB 3.0: 5Gb/s FireWire 800: 800Mb/s USB 2.0: 480Mb/s FireWire 400: 400Mb/s*

Average Transfer Rate :	** USB 3.0: Up to 245MB/s FireWire 800: Up to 82MB/s FireWire 400*: Up to 40MB/s USB 2.0: Up to 35MB/s

Supported RAID levels :	Preconfigured RAID 5 Modes: RAID 0/10/5/5+spare Easy RAID selection

Security :	System monitoring and email alerts for temperature and RAID events Kensington™ lock compatible Cable management

LaCie Shortcut Button :	Launch any application (backup, music, slideshow, etc.) by pushing the front button

Power Supply :	100-240Vca; 47/63Hz Power down drives without breaking daisy chain connection

Silent Cooling :	Aluminum enclosure Noctua® magnetic levitation cooling fan: high-performance, quiet, zero-vibration

Software :	LaCie Desktop Manager (controls front LED behavior, shortcut button configuration, Eco mode and email alerts for temperature or RAID events) Wuala Secure Cloud Storage*** Genie Backup Manager Pro for PC Intego Backup Manager Pro for Mac

Noise :	Average Value (idle): 21.9dB Average Value (stress): 32.3dB

Dimensions (WxHxD) :	7 x 7.7 x 8.7 in. / 178 x 196 x 220 mm

Weight :	7.1 kg / 15.7 lbs

System Requirements :	Latest version of Windows® XP^, Windows Vista®, Windows 7, Windows 8 Mac® OS X 10.5 (Intel only), 10.6, 10.7, 10.8 or greater Computer with a FireWire 800, FireWire 400*, USB 2.0 or USB 3.0 port Minimum free disk space: 600MB recommended

Box Content :	LaCie 4big Quadra USB 3.0 (including 4 x hard disks) USB 3.0 cable (USB 2.0 compatible) FireWire 800 cable External power supply Quick Install Guide CD with User Manual and software Cable management

Comments :	* Adapter cable (sold separately from www.lacie.com/accessories) required. File speeds limited to FireWire 400 speeds. Maximum interface transfer rate = theoretical bus bandwidth, whereas burst transfer rate = maximum drive speed. Tests conducted in RAID0 with 3TB hard disks. Speeds depend on the RAID mode selected, and average transfer rates vary from one computer to another and from one drive to another. * Full terms and conditions available at www.wuala.com/lacie. ^ Windows XP® 32-bit does not support volumes with capacities exceeding 2TB. 1TB (Terabyte) = 1000GB. 1 GB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5-10% less).
